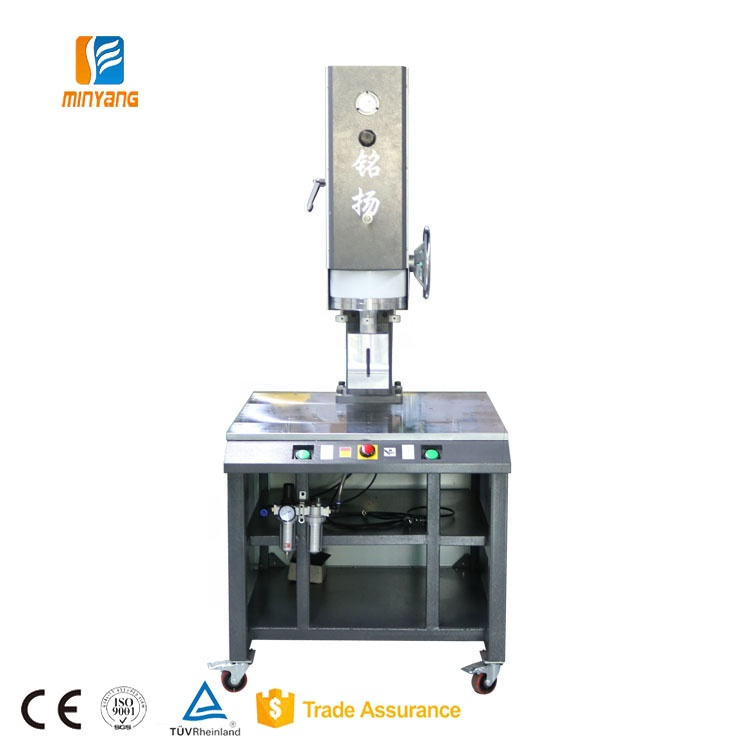

15KHZ High Power Intelligent Ultrasonic Plastic Welding Machine

Short Description:

We are a professional manufacturer of good quality high power ultrasonic equipment; The high power ultrasonic welding machine has:

Automatic frequency tracking; Intelligent control system;

High Power suitable weld large product;

English/Chinese digital operation screen

Abnormal alarm functions

Energy mode and time welding mode

Model: MY-HP1542-S/MY-HP1556-S/MY-HP1565-S
Frequency: 15k
Power:4200w/5600w/6500w
Voltage: 110V/220V

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Contact Us

Product Tags

Specification

Model	MY-HP1542-S	MY-HP1556-S	MY-HP1565-S
Frequency	15k	15k	15k
Power	4200w	5600w	6500w
Voltage	110v/220v	110v/220v	110v/220v
Welding time	0.01-9.99s	0.01-9.99s	0.01-9.99s
Weight	340kg	340kg	340kg
Machine Size	75010001850mm	75010001850mm	75010001850mm
Warranty	1 year	1 year	1 year
Service	OEM/ODM	OEM/ODM	OEM/ODM
Driven Type	Pneumatic（air Pipe diameter 8mm）	Pneumatic（air Pipe diameter 8mm）	Pneumatic（air Pipe diameter 8mm）
Air pressure	0.1-0.7Mpa	0.1-0.7Mpa	0.1-0.7Mpa

Features

Here are the features of the high power ultrasonic plastic welding machine, Mingyang ultrasonic is committed to offering you the most appropriate welding solutions according to your products and welding requirements.

Output interface: HMI Color man-machine interface

Frequency and power display screen: Chinese/English

Abnormal alarm functions: Generator, transducer, mold and other 23 abnormal monitoring

Ultrasonic amplitude adjustment: 10%-100% adjustable (MIX accuracy adjust 1%)

Cylinder drop speed adjustment: FESTO Precision speed control valve control

Manual automatic function: Supply

Automatic frequency tracking: Supply

Weld height control: Supply

Welding mode: Energy mode and time mode

Adopt Japanese NTK vibrator and King brand steel and titanium alloy amplitude.

Floor type overall design, large integrated workable, with movable wheel for easy handling.

Adopt intelligent control system;

Soundproof box can be chosen

comic book display case ultrasound welder

20KHZ 5600W ultrasonic plastic welding machine

20KHZ 4200W Intelligent ultrasonic plastic welding equipment

Competitive Advantage

△ High efficiency---It only takes 0.1-3 seconds at each time.

△ High strength---Weld joints can withstand big tensile force and high pressure.

△ High quality---Weld joints are water-tight and air-proof; airtight operation is guaranteed.

△ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.

Factory Show

Certification

FAQ

Q: Could you customized the machine based on our requirement?

A: Yes, we can. The mould could be customized based on your samples, the voltage can be 110V or 220V, the plug can be replaced with yours before shipment.

Q: What do I need to provide to get the right welding scheme and price?

A: Please provide the material, size of your product and your welding requirements, such as waterproof, tight air, etc. You'd better provide product 3D drawings , and we can help to check if the drawings need to be changed. So that the plastic product design could meet the requirements of ultrasonic welding technology.
