20KHZ Standard Ultrasonic Welder for Welding Non-woven Fabric and Toys

Short Description:

We are a professional manufacturer of ultrasonic welder with high quality. The standard welding machine is popular around the world with the advantages of high efficiency, high strength, high quality and economy.

Model: MY-PT02-2018-S/MY-PT02-2022-S/MY-PT02-2026-S
Frequency: 20k
Power: 1800w/2200W/2600W
Voltage: 110V/220V

Mould: can be customized by your products

Send email to us

Product Detail

Contact Us

Product Tags

Specification

Model	MY-PT02-2018-S	MY-PT02-2022-S	MY-PT02-2026-S
Frequency	20k	20k	20k
Power	1800w	2200w	2600w
Voltage	110v/220v	110v/220v	110v/220v
Welding Air Pressure	0.1~0.7Mpa	0.1~0.7Mpa	0.1~0.7Mpa
Welding time	0.01-9.99s	0.01-9.99s	0.01-9.99s
Weight	120kg	120kg	120kg
Machine Size	4006501180mm	4006501180mm	4006501180mm
Warranty	1 year	1 year	1 year
Service	OEM/ODM	OEM/ODM	OEM/ODM
Driven Type	Pneumatic（air Pipe diameter 8mm）	Pneumatic（air Pipe diameter 8mm）	Pneumatic（air Pipe diameter 8mm）

Features

Here are the features of the standard ultrasonic plastic welding machine, we will offer you the most suitable ultrasonic solution according to your welding requirements.

1.Classical analog type ultrasonic welder, simple operation.

2.Quick application changeover, high welding seam strength.

3.Suitable for high cadences and short cycle times production needs.

4.Solid-steel structure design can last for multiple decades.

5.Imported Pneumatic parts guarantee the stable welding.

6.High quality transducer and booster, durable and stable.

7.Over-Current self-protection

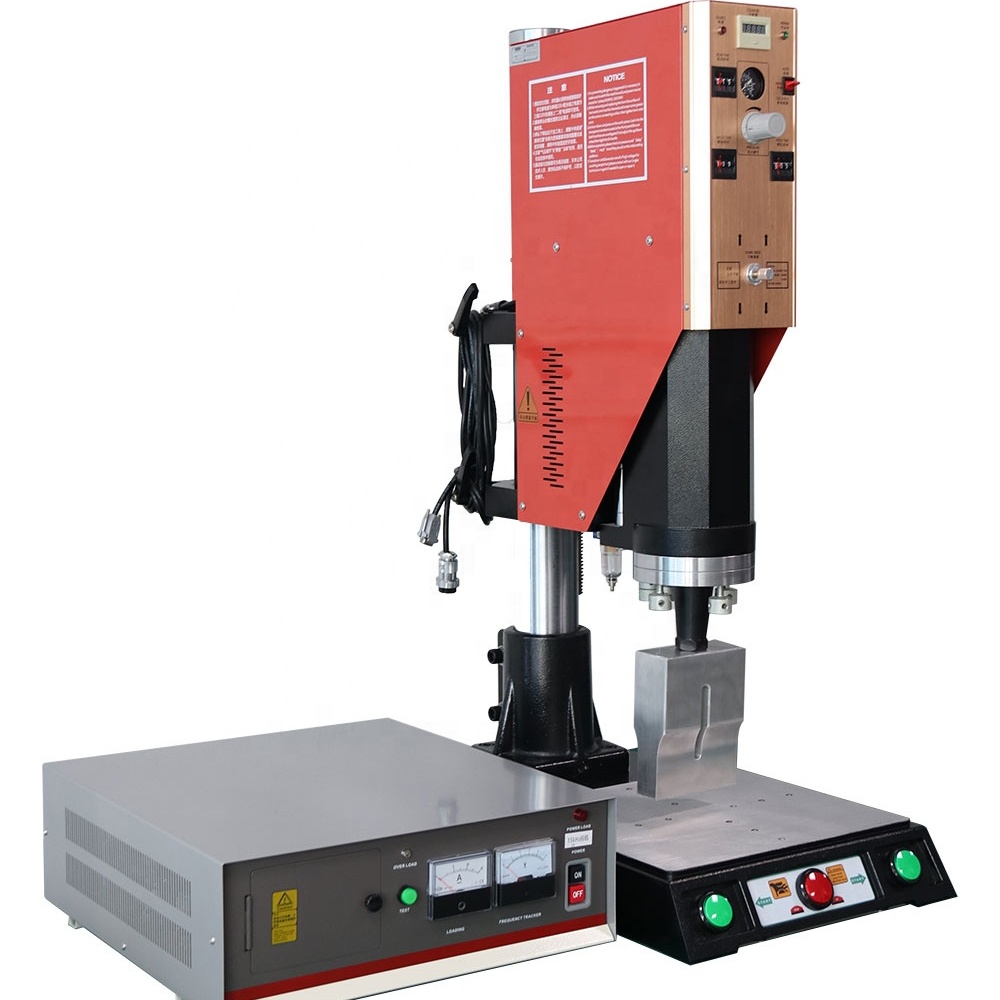

1 20KHZ 2600W Standard Ultrasonic Welder

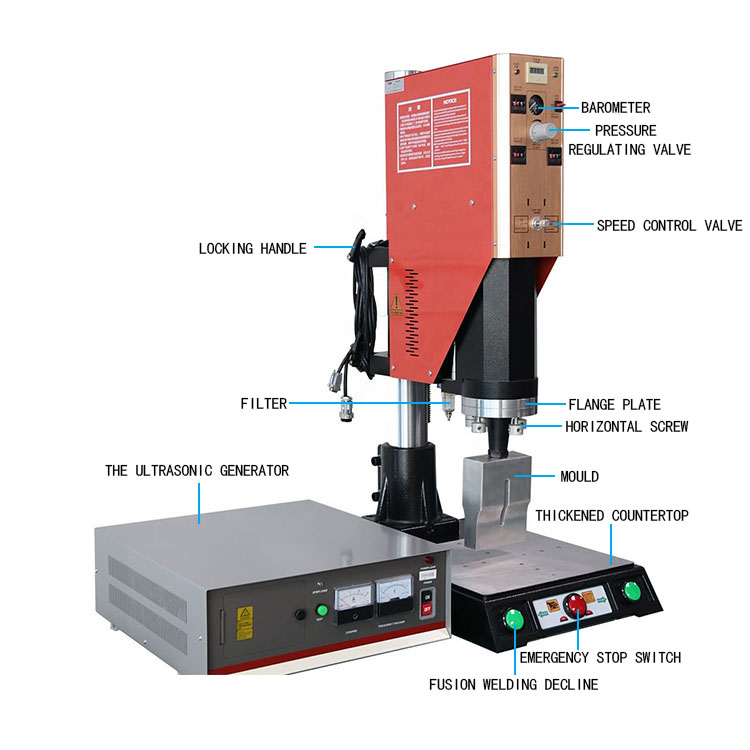

20KHZ 1800w Standard ultrasonic plastic welder

Competitive Advantage

△ High efficiency---It only takes 0.1-3 seconds at each time.

△ High strength---Weld joints can withstand big tensile force and high pressure.

△ High quality---Weld joints are water-tight and air-proof; airtight operation is guaranteed.

△ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.

Factory Show

Certification

Applications

Suitable for welding, riveting and implant molding of fine ABS, PE, PC PS, PVC,PP, SAN, PA, acrylic, nylon, ABS and PC composite materials. As long as the welding head is changed, it can be used in a variety of applications, widely used in electronics, electrical appliances, automotive parts, plastic toys, stationery, daily necessities, handicrafts, cosmetics and other industries.
