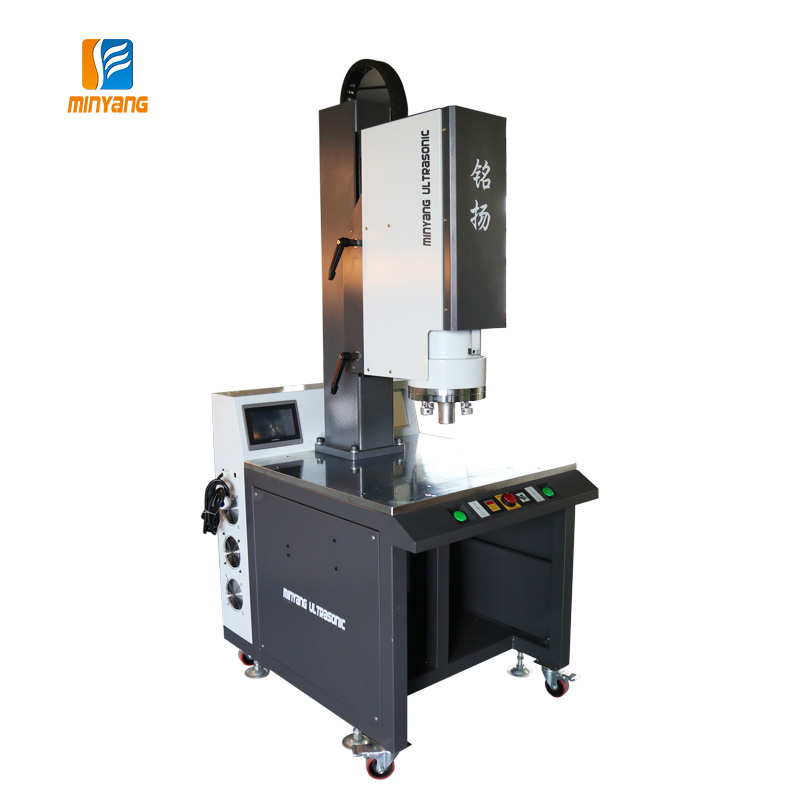

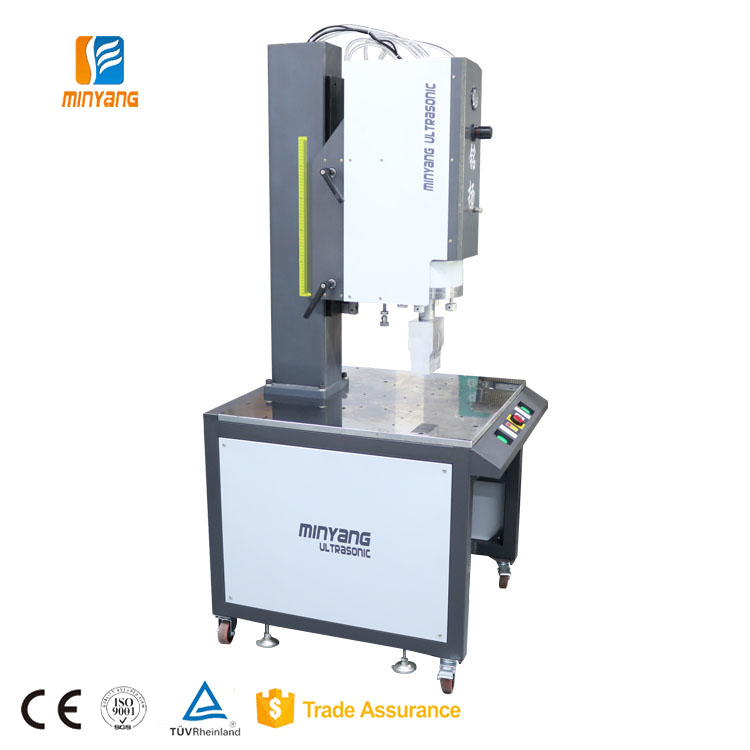

High Power Intelligent Ultrasonic Plastic Welder for Comic Book Display Case
Video
Specification
| Model | MY-HP2042-S | MY-HP2056-S | MY-HP2065-S |
| Frequency | 20k | 20k | 20k |
| Power | 4200w | 5600w | 6500w |
| Voltage | 110v/220v | 110v/220v | 110v/220v |
| Welding time | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s |
| Weight | 340kg | 340kg | 340kg |
| Machine Size | 750*1000*1850mm | 750*1000*1850mm | 750*1000*1850mm |
| Warranty | 1 year | 1 year | 1 year |
| Service | OEM/ODM | OEM/ODM | OEM/ODM |
| Driven Type | Pneumatic（air Pipe diameter 8mm） | Pneumatic（air Pipe diameter 8mm） | Pneumatic（air Pipe diameter 8mm） |
| Air pressure | 0.1-0.7Mpa | 0.1-0.7Mpa | 0.1-0.7Mpa |
Features
The intelligent high power ultrasonic welding machine is suitable for the comic book display case welding sealing, here is the welding effect:
The comic book display case is sealded, can't be broken by hands ;
The welding effect is good;
The welding appearance is good and beautiful;
No white marks and the damage on it.
Here are the features of the high power ultrasonic plastic welding machine, Mingyang ultrasonic is committed to offering you the most appropriate welding solutions according to your products and welding requirements.
Output interface: HMI Color man-machine interface
Frequency and power display screen: Chinese/English
Abnormal alarm functions: Generator, transducer, mold and other 23 abnormal monitoring
Ultrasonic amplitude adjustment: 10%-100% adjustable (MIX accuracy adjust 1%)
Cylinder drop speed adjustment: FESTO Precision speed control valve control
Manual automatic function: Supply
Automatic frequency tracking: Supply
Weld height control: Supply
Welding mode: Energy mode and time mode
Adopt Japanese NTK vibrator and King brand steel and titanium alloy amplitude.
Floor type overall design, large integrated workable, with movable wheel for easy handling.
Adopt intelligent control system;
Soundproof box can be chosen
Competitive Advantage
△ High efficiency---It only takes 0.1-3 seconds at each time.
△ High strength---Weld joints can withstand big tensile force and high pressure.
△ High quality---Weld joints are water-tight and air-proof; airtight operation is guaranteed.
△ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.
Factory Show
Certification
FAQ
A: Yes, we can. The mould could be customized based on your samples, the voltage can be 110V or 220V, the plug can be replaced with yours before shipment.
A: Please provide the material, size of your product and your welding requirements, such as waterproof, tight air, etc. You'd better provide product 3D drawings , and we can help to check if the drawings need to be changed. So that the plastic product design could meet the requirements of ultrasonic welding technology.
